Fried Instant Instant Noodle Machines
The fried instant noodle machines produce Instant noodles that can be served in three to five
minutes by re-hydrating the noodles in boiled water. These
instant noodle machines can also be used to make dried noodle snack foods.
SPECIFICATIONS
FIN-serial Fried Instant Noodle Machines
(40-380 thousand packs or 40-120 thousand cups / 8hrs)
Model
|
FIN-4W
|
FIN-8W |
FIN-12W |
FIN-16W
|
FIN-20W |
Output
(pcs/shift)
|
40000 |
80000 |
120000 |
160000 |
200000 |
Power capacity
(kW) |
51 |
64 |
84
|
115
|
120
|
Steam consumptn. (kg/hr) |
1000
|
1500
|
2000
|
2300
|
2600
|
Operators
/shift
|
4
|
5
|
6
|
6
|
6
|
Dimension (l.w.h) meters |
65X5X6 |
75X5X6 |
75X5X6 |
80X56 |
90X5X6 |
FLOW SHEET
Flour conveying → Mixing (dough preparing →
Dough Aging
→ Rolling → Slitting and Ripple Formation → Steaming
→ 1st Cooling → Cutting and Fold → Frying →
Arranging → 2nd Cooling → Inspecting and Conveying →
Product
All our unit operation machines are made of SAE 304. We can provide the advanced PLC control system as well as the simple switchboard control the complete set of the equipment as well as the individual machine.
Fried Instant Noodle Machine - Dough Making
First 30% of water is added to the wheat flour and the mixture is stirred by these mixer machines to prepare a dough. In this stage optional ingredients such as solution of food additives stored in the tank are added. We make both traditional mixers and vacuum dough mixers.

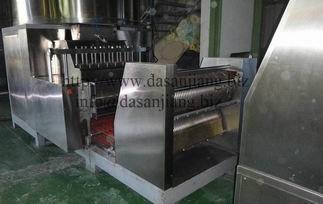

Fried Instant Noodle Machine - Compound Rolling
The dough is compressed into a sheet. This process is fully automatic and no human interference is required.

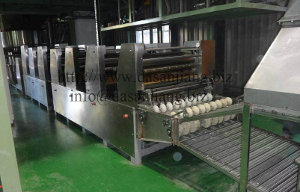

Fried Instant Noodle Machine - Continuous Rolling
The dough sheet is further compressed into a thin sheet to be ready to cut into noodles.
|
Return to Instant Noodle Machine Homepage
Fried Instant Noodle Machine - Cutting and Corrugating
The sheet is cut into noodle strips. Because the speed of the conveyor is set to be slower than the noodle cutter speed the noodles are twisted into the wavy form. We provide the advanced control system for the operation of the noodle cutting and wave-forming.
Fried Instant Noodle Machine - Steamer
Noodles are steamed at around 100 degree Celsius for a about 2 minutes.

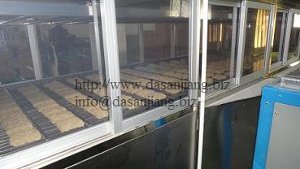

Fried Instant Noodle Machine - Cooling Chamber
The steamed noodles have to be cooled down before they are sent into the deep fryer to be fried and dehydrated.

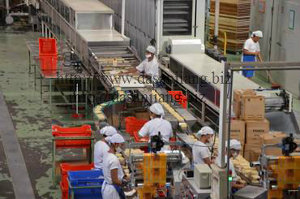

Fried Instant Noodle Machine - Packing

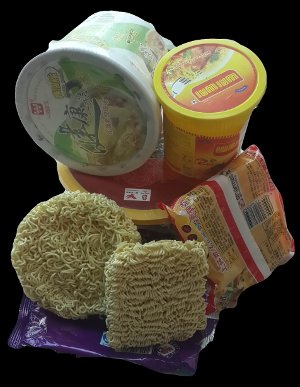

Products of Fried Instant Noodle Machine
|
